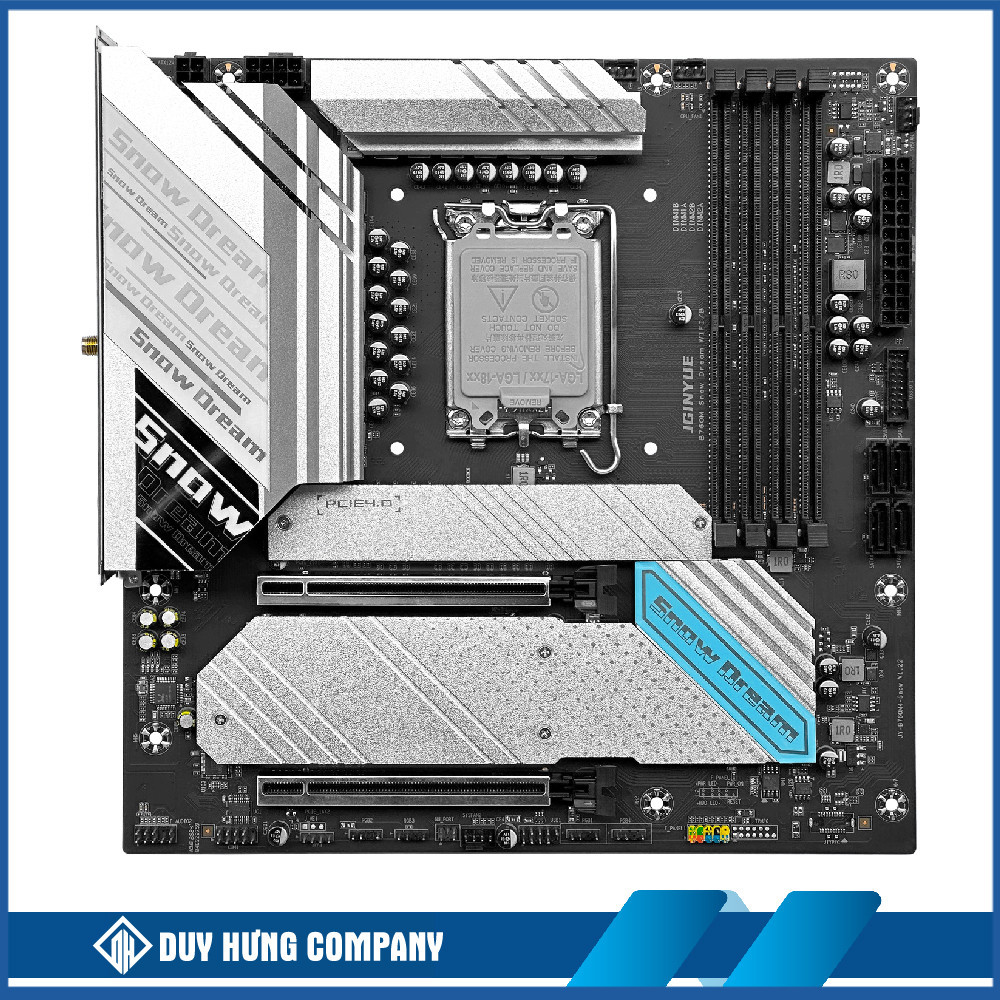

Mainboard JGINYUE B760M Snow Dream WiFi/B

Supports Intel 12th, 13th, and 14th generation LGA1700 platform processors

Supports dual channel 4 DDR4 slots with frequencies ranging from 2133 to 4000MHz (XMP support may vary depending on different CPU and memory

configurations/G1 mode with 1A and 2A slots for dual channels), with a maximum support of 128GB

DR MOS 14+1+1 phase power supply

Rear 3 USB 2.0 and 2 USB 3.2; 1 USB 2.0 pin in front and 1 USB 3.0 pin in front

2 PCIe X16 4.0 slots (one of which is 4.0 4X)

1 2.5G network card interface; 1 DP interface; 1 HDMI interface

3 M.2 NVME protocol interfaces (2 4.0, 1 3.0 speed)

1 Type-C interface

1 WiFi interface (with 9560AC module and antenna)

1 one click clear Bios button

4 5v3 RGB pin MCU chips; 4 4-pin fan pins
