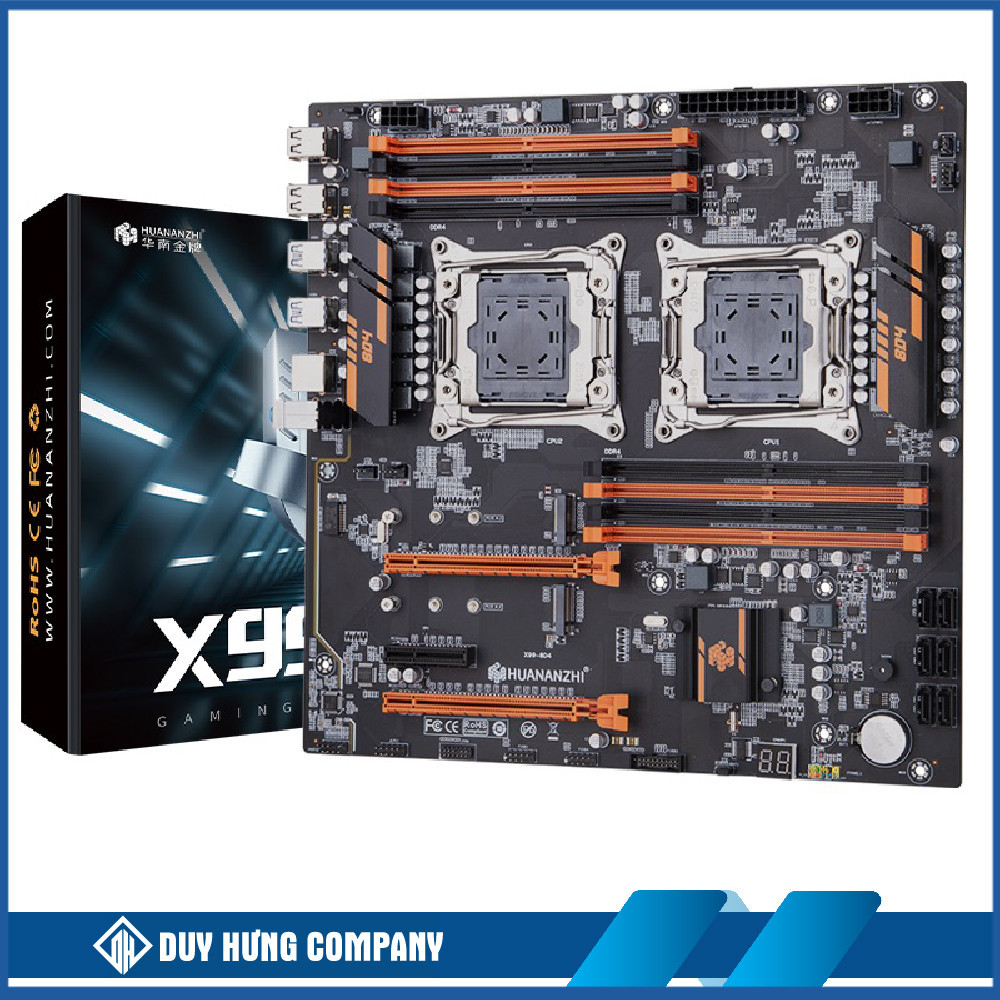

Mainboard Huananzhi X99-8D4

Model: HUANANZHI X99-8D4 Motherboard

Chipset Intel C612 Series Chipset

CPU Socket: Support Intel LGA2011-3 Platform Processors

Memory Slot: 8x DDR4 Memory Slot，Support Server Memory

Memory Standard: Support Four Channels DDR4 2400/ 2133MHzMHz，Max Support 256GB

Storage Interface 6xSATA 3.0 6Gb/s
Expansion Slots: 2xPCI Express 3.0x16，1xPCI Express 3.0x4

Expansion Interface: 2xM.2 2280 NVME PCIE X4 3.0 32Gb/s

Sound Track 5.1

Network Card Gigabit network card

Power Interface 24PIN+8PIN+8PIN

FAN PIN: 2xCPU_FAN PIN，2xSYS_FAN PIN

Power Supply 6+6-Phase Power Supply

PCB Layers 6-Layer PCB

Dimension 295*290MM E-ATX

Rear Panel Interface: 4xUSB2.0，4xUSB3.0，1xNetwork Card Interface，1x3-Hole Audio Interface

Front Panel Interface: 2 xUSB2.0 PIN，1 xUSB3.0 PIN，1 xFront Audio PIN，1 xCOM PIN，1 xPower On/Restart PIN，
1 xMotherboard Buzzer，1 xDebug PIN，1 xTPM PIN

Support System: Windows7 Windows10 Windows11

BIOS AMI UEFI BIOS

Packing List: 1 x Motherboard，2x SATA Cable，1xIO PANEL
