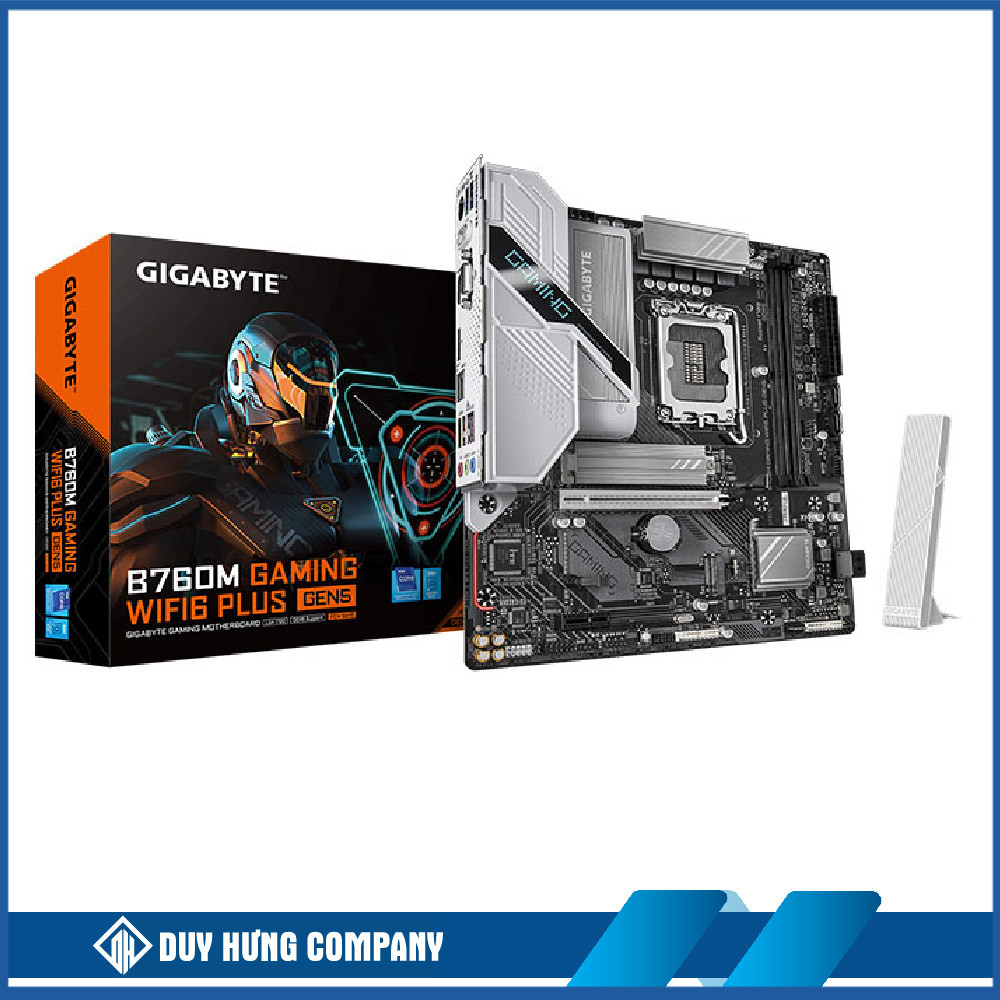

Mainboard Gigabyte B760M GAMING WIFI6 PLUS GEN5

CPU Socket: LGA1700 (14th, 13th, 12th Gen Intel Core, Pentium Gold, Celeron)

Chipset: Intel B760 Express

Memory Support: DDR5 5600/5200/4800/4400 MT/s (i9/i7), DDR5 4800/4400 MT/s (i5/i3/12th Gen)

Memory Slots: 2 × DDR5 DIMM (Dual Channel), Max 128GB

Memory Features: ECC (non-ECC mode), XMP, various DIMM configurations

Integrated Graphics: D-Sub (1920×1200@60Hz), HDMI 2.1 (4096×2160@60Hz), DP 1.2 (4096×2304@60Hz), Triple display support

Audio: Realtek HD Audio (2/4/5.1/7.1-channel), S/PDIF Out

LAN: Realtek 2.5GbE

Wireless: Realtek Wi-Fi 6 (RTL8851BE), Bluetooth 5.3

Expansion Slots: 1 × PCIe 5.0 x16 (CPU), 1 × PCIe 3.0 x1 (Chipset)

Storage Interface: 2 × M.2 (PCIe 4.0 x4/x2), 4 × SATA 6Gb/s, RAID 0/1/5/10

USB Ports: Rear: 1 × USB-C (3.2 Gen 1), 3 × USB 3.2 Gen 1, 2 × USB 2.0

: Internal: 2 × USB 3.2 Gen 1, 4 × USB 2.0

RGB Headers: 2 × Gen2 Addressable RGB, 1 × RGB Strip Header

Fan Headers: 1 × CPU Fan, 3 × System Fan

Internal I/O: TPM, S/PDIF, Serial, USB headers, Q-Flash Plus, Clear CMOS

Back Panel I/O: USB Ports, PS/2, HDMI, D-Sub, DP, RJ-45, Audio Jacks, Wi-Fi Antennas

Monitoring: Voltage, Temp, Fan, Water Flow Detection, Fan Fail Warning

BIOS: AMI UEFI, 128 Mbit Flash

Software: GIGABYTE GCC, Q-Flash, Smart Backup, Norton OEM

OS Support: Windows 10/11 64-bit

Form Factor: Micro ATX, 24.4 cm × 22.5 cm

Warranty: 3 Years

Note: Features, price, and specifications are subject to change without notice. Images are for representation only.
